Very Narrow Aisle

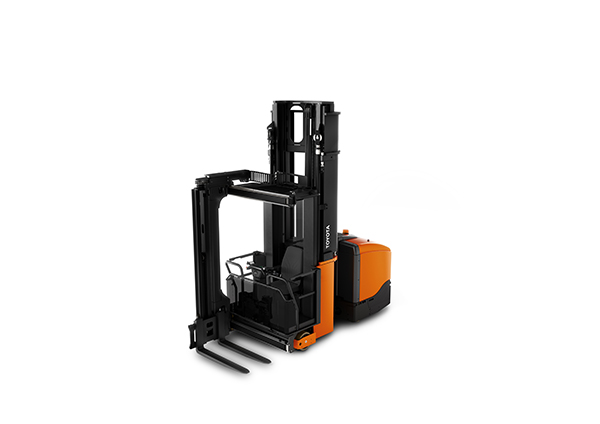

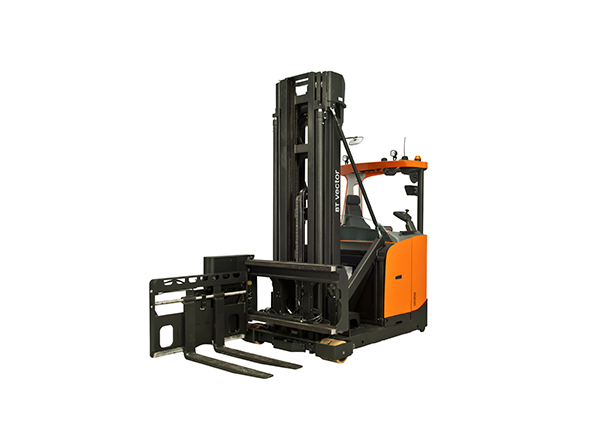

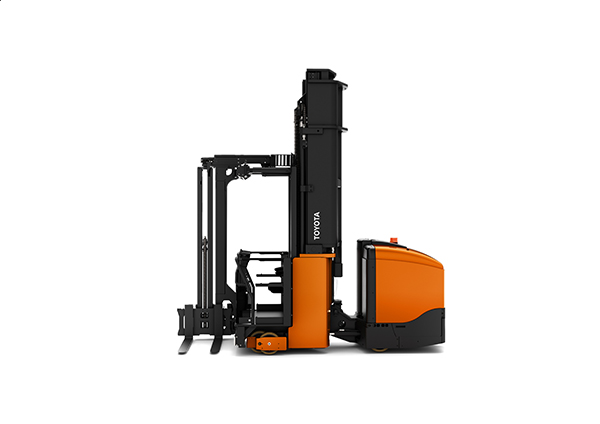

Experience the power and compact design of BT Vector Very Narrow Aisle Trucks, available exclusively at Carryduff Forklift. With full VNA functionality packed into an extremely compact footprint, these trucks are perfect for optimising space in narrow aisles while delivering class-leading performance and energy efficiency. Equipped with BT Optipace technology, these trucks control speed when operating in narrow aisles, ensuring the highest safe driving speed while considering load weight and operating height. Trust BT Vector Very Narrow Aisle Trucks to enhance productivity and efficiency in your material handling operations, exclusively at Carryduff Forklift.

Product Features

/01

Unique chassis design

The BT Vector A-series’ unique articulated chassis allows it to drive between aisles using a transfer aisle up to one metre narrower than that required by a non-articulated truck. This means that typically an extra four pallet positions can be provided on each level within an aisle, and with lift heights to well over 14 metres it can result in up to 60 extra pallet positions per aisle. This gives substantial cost savings in terms of space, but not at the cost of productivity. Aisle transfer typically takes less than 10 seconds.

/02

Advanced Lifting System

The energy required to lift the cab and load is significantly reduced by Toyota’s Advanced Lifting System. It is a fully integrated combination of hydraulic and gas-pressure lifting, using precise electronic control for seamless and smooth operation. Inert nitrogen is compressed in a sealed system as the cab is lowered. The stored energy is then used to aid the next lifting movement. As a result the lift motor is working to lift little more than the weight of the load itself, saving energy. Two-shift operation is possible on a single charge.

/03

Optipace

Optipace controls the speed of the truck when operating in narrow aisles, providing the highest safe drive speed taking into account the load weight and operating height.

/04

TPS-based reliability

Like all Toyota trucks, BT Vector trucks are built according to the Toyota Production System, assuring the highest levels of quality, durability and reliability.

/05

Li-ion battery technology

This maintenance-free battery technology offers 30% less energy consumption, exceptional battery life and the option for fast charging at any time, eliminating the need for battery change.

Product Overview

Whether you’re looking to purchase or hire, we offer flexible options to match your budget and requirements. With stock readily available, you can easily find what you’re looking for, and for added peace of mind, we also provide trial periods so you can be confident in your choice.

New or used

Stock available

Available for trial

Purchase or hire
